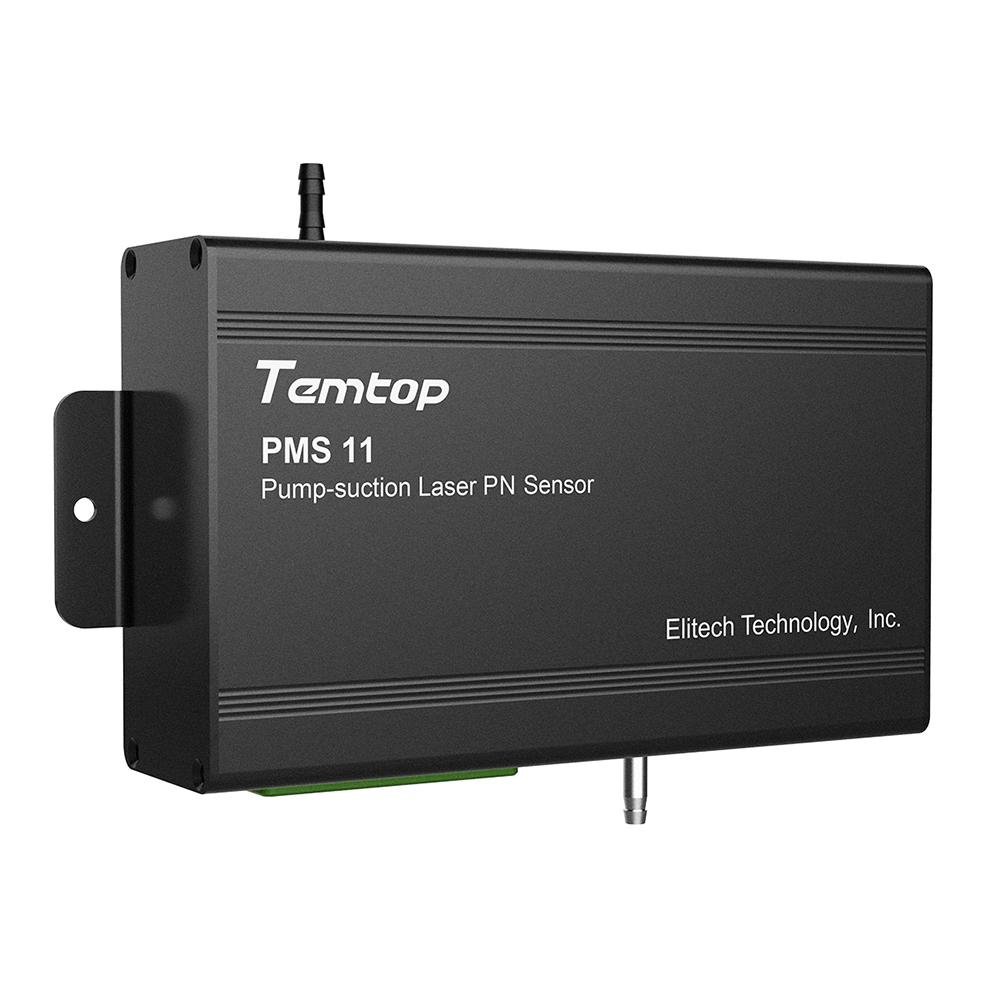

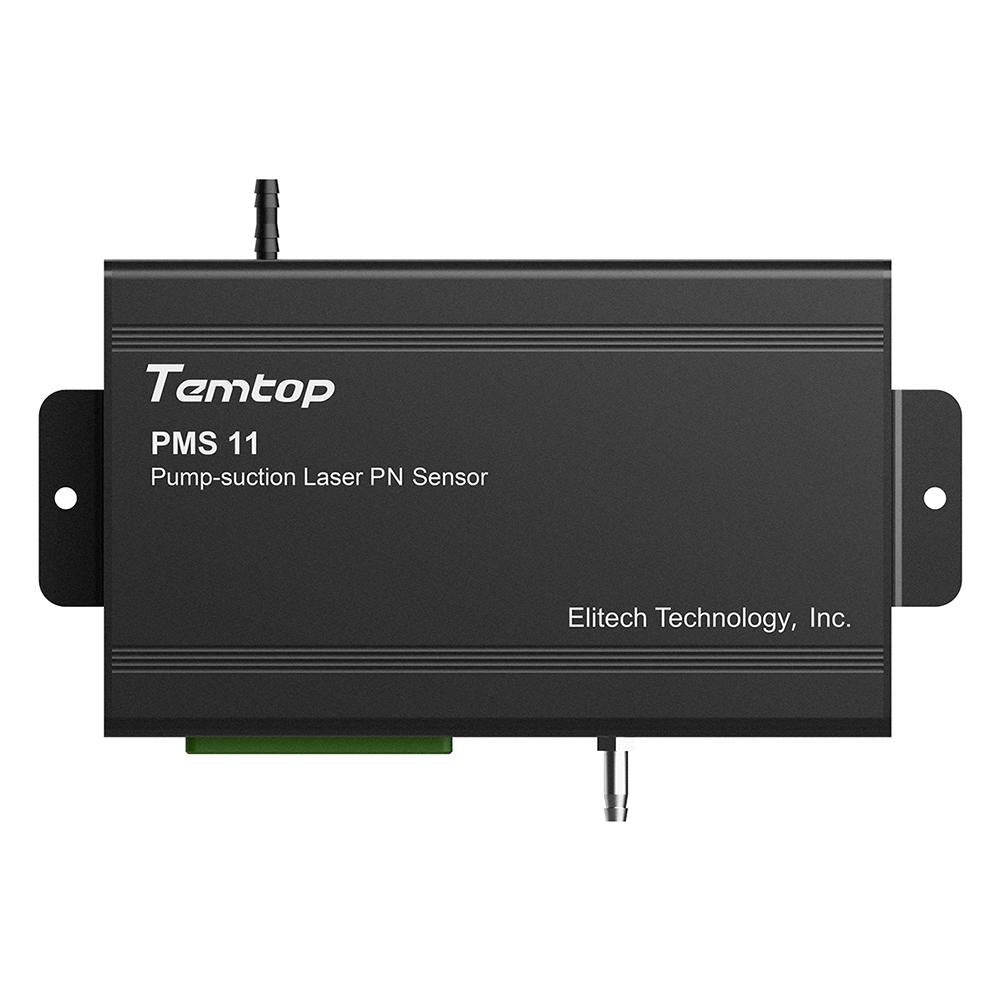

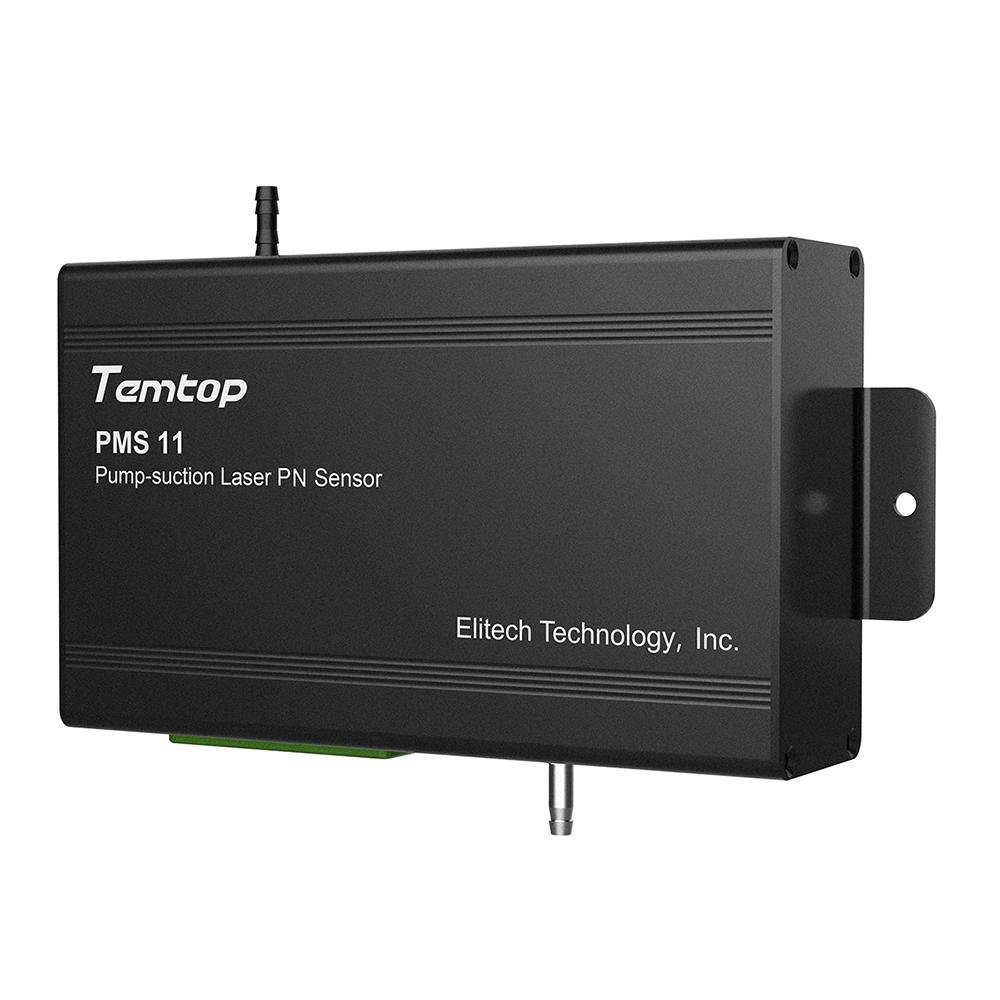

Temtop PMS 11 embedded particle counter is much cost-effective and easy to use, which can monitor particle size data from 0.3 μm to 5 μm. It is widely used in many application scenarios such as filter testing, indoor air quality, dust monitoring, and cleanroom monitoring.
Key Features:

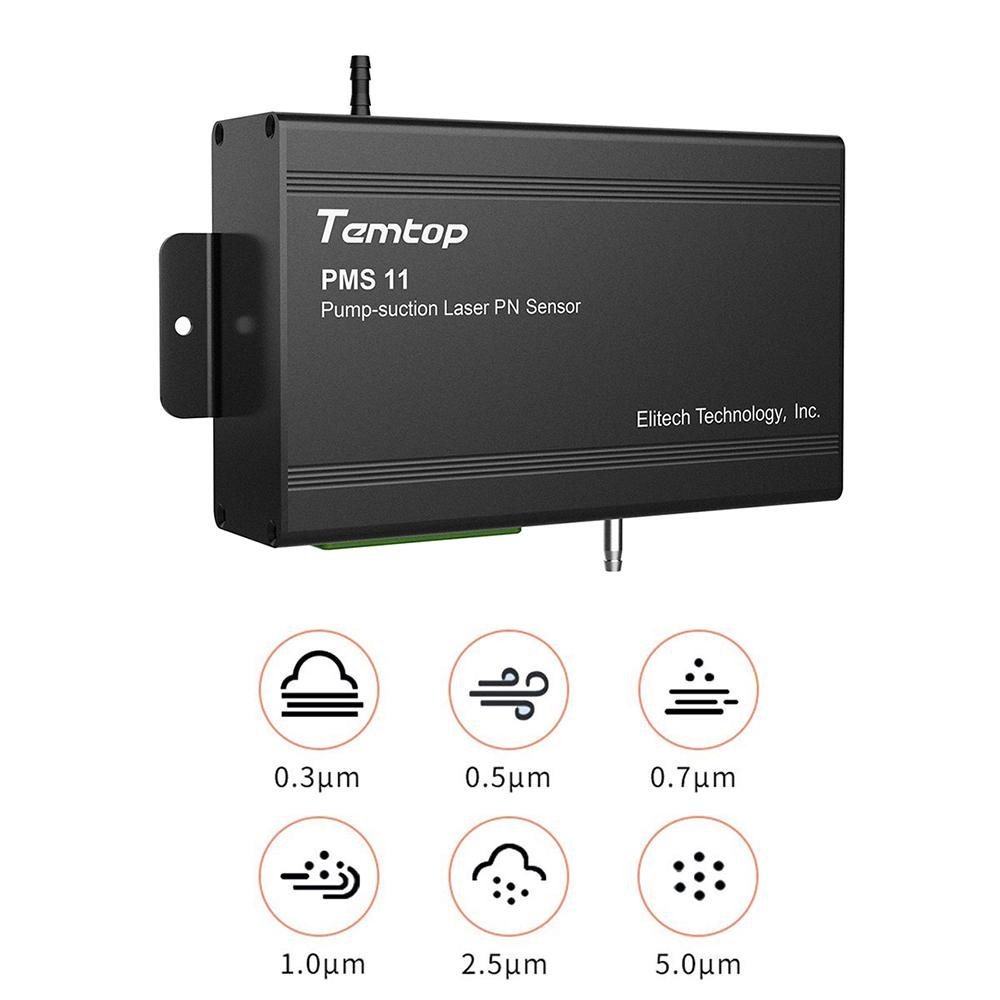

- Six-channel particle size monitoring: Simultaneously monitor 0.3μm, 0.5μm, 0.7μm, 1μm, 2.5μm, 5μm particle size data, the sampling time is adjustable from 3 seconds to 1 minute;
- Accurate calibration: Factory precise calibration can effectively reduce the cost of secondary calibration;
- Efficient sampling: Equipped with a four-wire brushless vacuum pump, with a large flow rate and stable flow rate to ensure data confidence;
- Strong anti-interference: Adopt all-metal precision optomechanical structure, stronger anti-interference performance;
- Easy integration: Small size, industry-standard interface, more convenient installation;
- Super long-running: Core devices such as industrial-grade lasers and air pumps can run online for 10,000 hours.

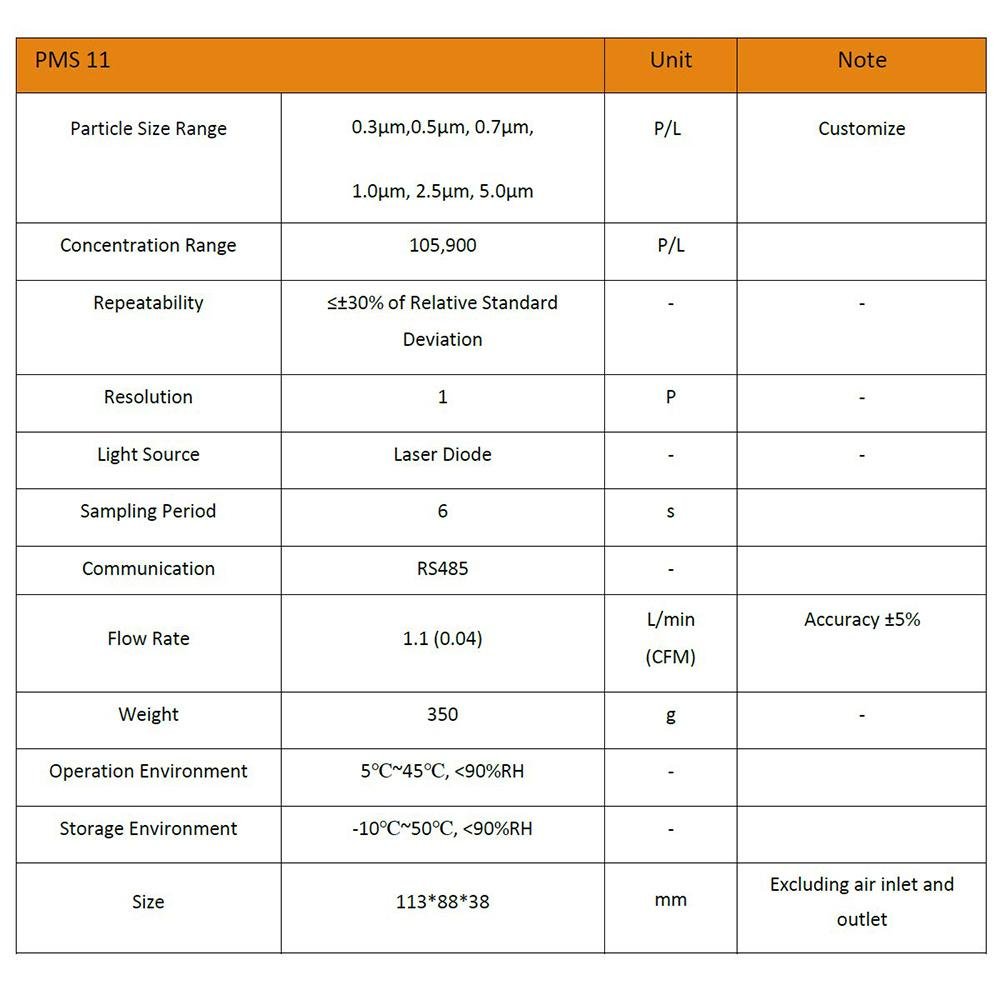

Technical Specifications：
- Particle Size Range: 0.3μm,0.5μm,0.7μm,1.0μm,2.5μm,5.0μm
- Concentration Range: 105,900 P/L
- Resolution: 1P
- Repeatability: ≤+30% of Relative Standard Deviation
- Light Source: Laser Diode
- Resolution: 1P
- Sampling Period: 6s
- Communication: RS-485
- Flow Rate: 1.1 L/min (0.04 CFM); 2.83 L/min （Customizable）
- Weight: 350g
- Size: 113*88*38 mm
- Operation Environment: 5℃~45℃, <90%RH
- Storage Environment: -10℃~50℃, <90%RH
- Warranty: 1 year
Application：
Filter test, filter material test, cleanroom monitoring, indoor air quality, workplace monitoring, industrial measurement, QA department.
User manual: Download
