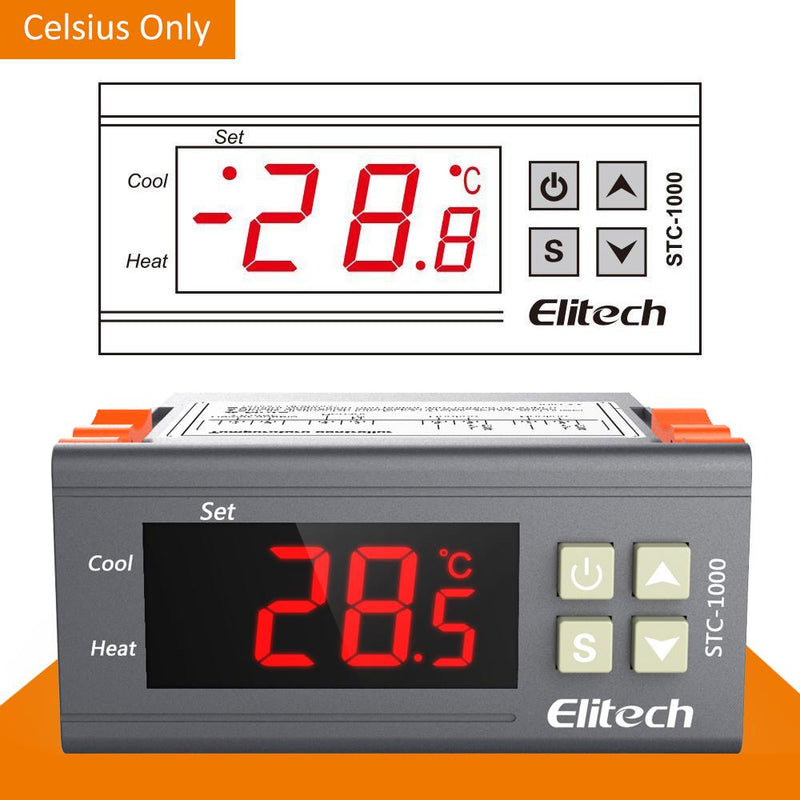

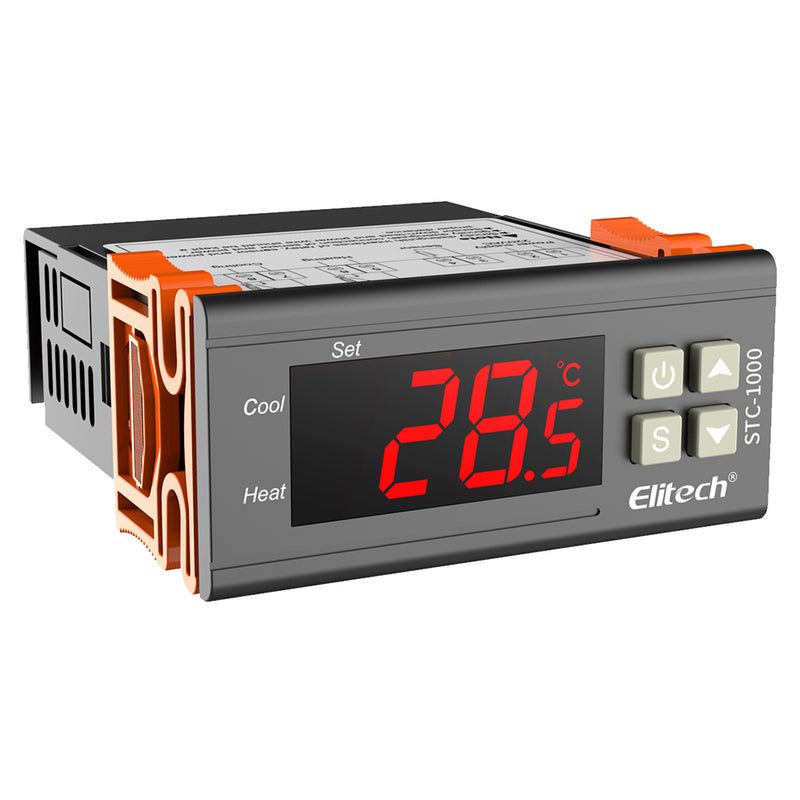

Thermostat Temperature Controller Elitech STC-1000 main functions as below: Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error occurs.
- Temperature measuring range: -50℃~99℃;
- Resolution: 0.1℃;
- Accuracy: ±1℃ (-50℃~70℃);
- Sensor error delay: 1 minute
- Power supply: 110 VAC±10%, 50/60Hz;
- Power consumption: less than 3W;
- Sensor: NTC sensor (1PC);
- Relay contact capacity: Cool 10A/110VAC;Heat 10A/110VAC;
- Ambient temperature: 0~60℃;
- Storage temperature: -30~75℃;
- Relative humidity: 20%~85% (No condensate)
User manual: Download

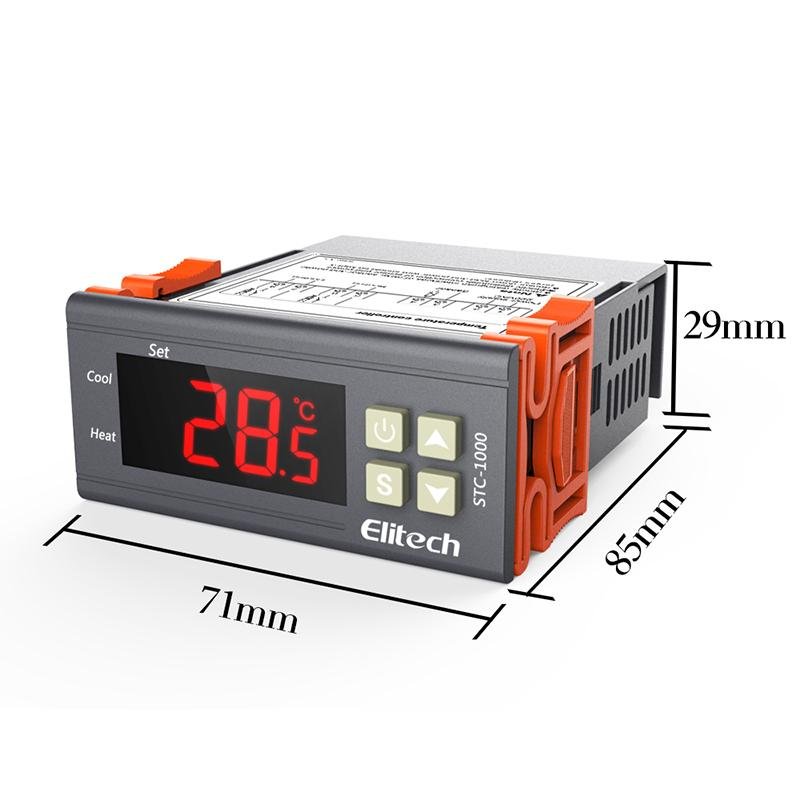

Specification and Size:
1.Front panel size: 75(L)×34.5(W)mm;
2.Mounting size: 71(L)×29(W)mm;
3.Product size: 75(L)×34.5(W)×85(D)mm;
4.sensor length 2 m included;
5.Measure range: -50℃+99℃
6.Mounting size: 71*29 mm
7.Auto switch between refrigerating and heating
8. Return difference value

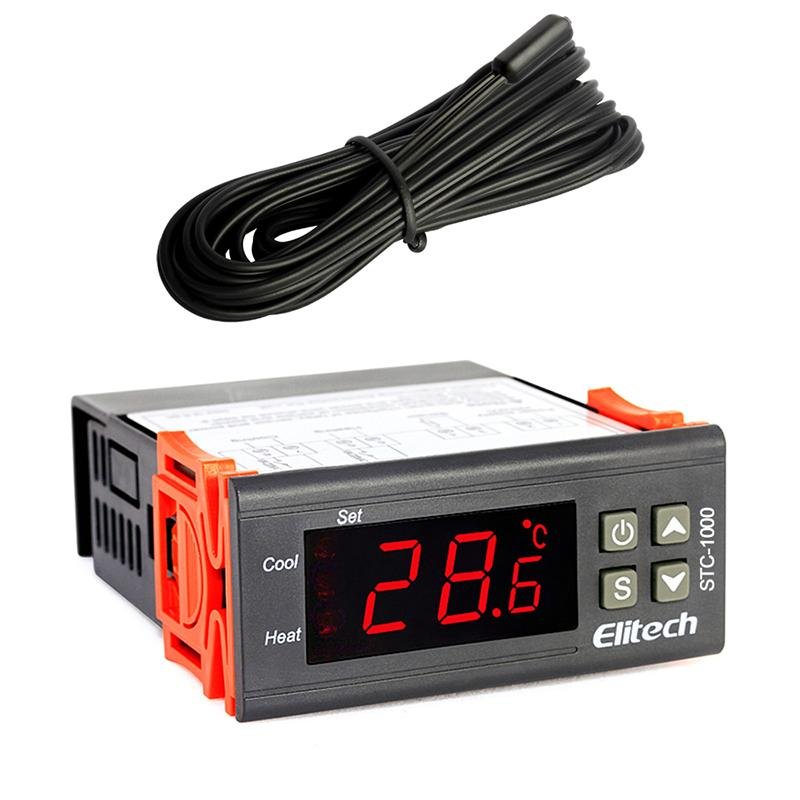

1 x STC-1000 Temperature controller 110v
1 x 2M Sensor
Note to check if the sensor is connected well, please be sure to connect the heating relay.

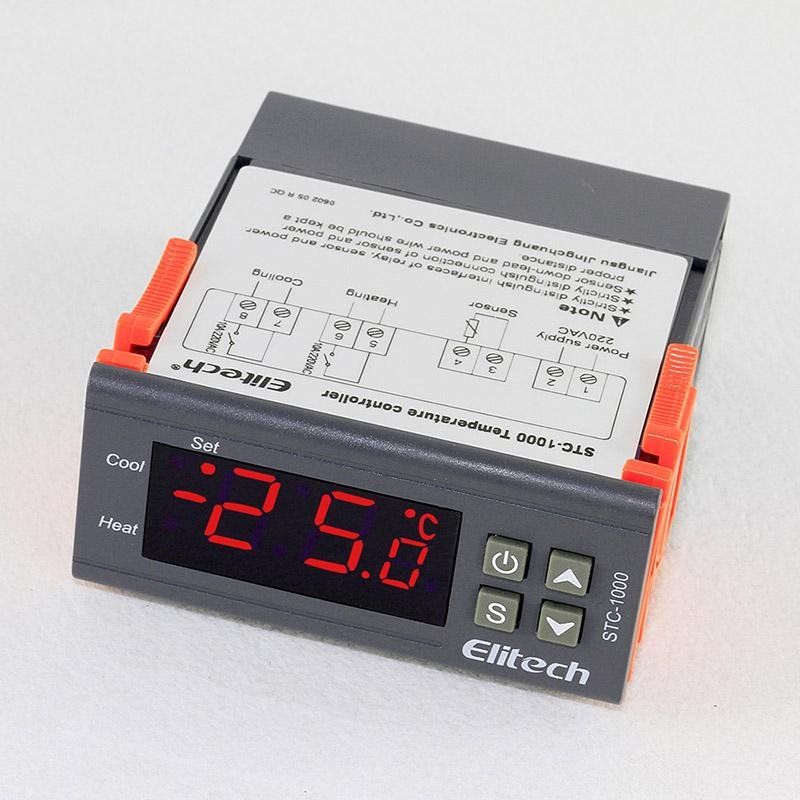

The unit is of a panel mount design and requires mounting in a suitable box. This unit is supplied with wiring diagram of how to fix the main unit to your application systems. However, it is highly recommended to do the wiring connections by a qualified technician.
