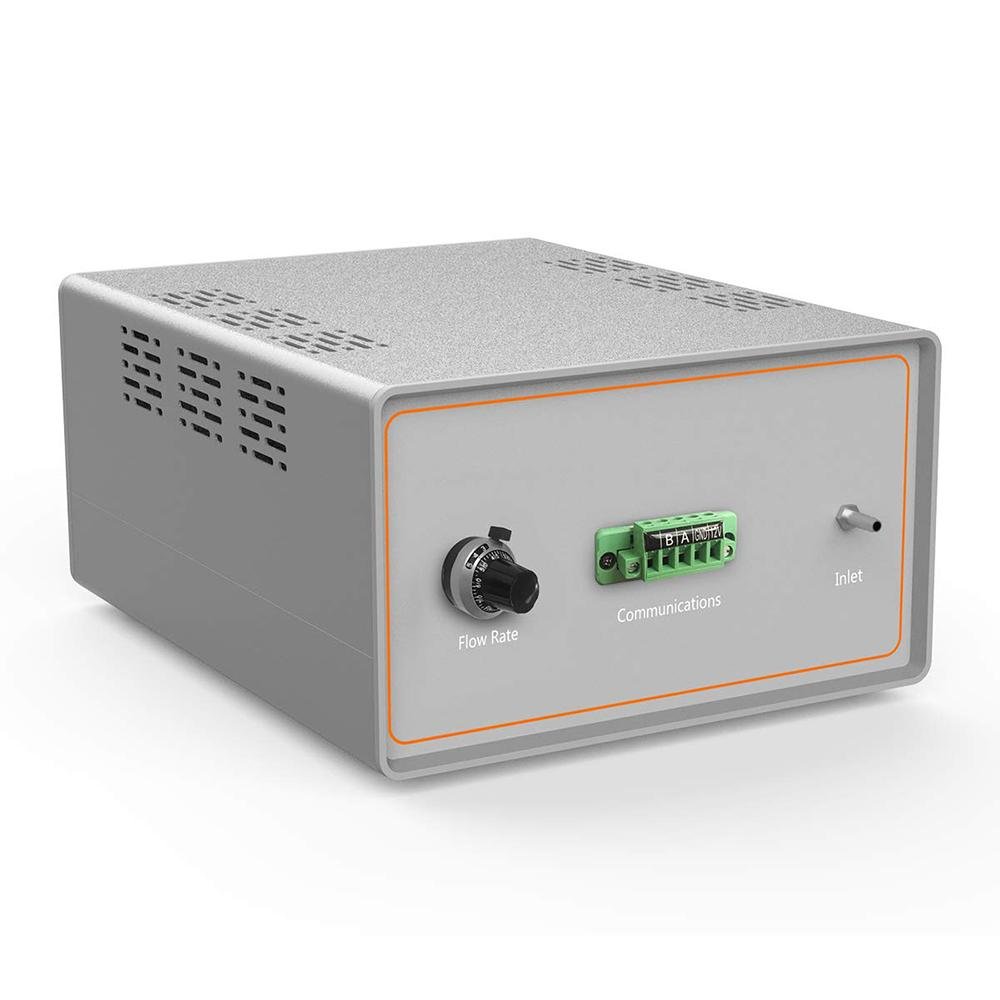

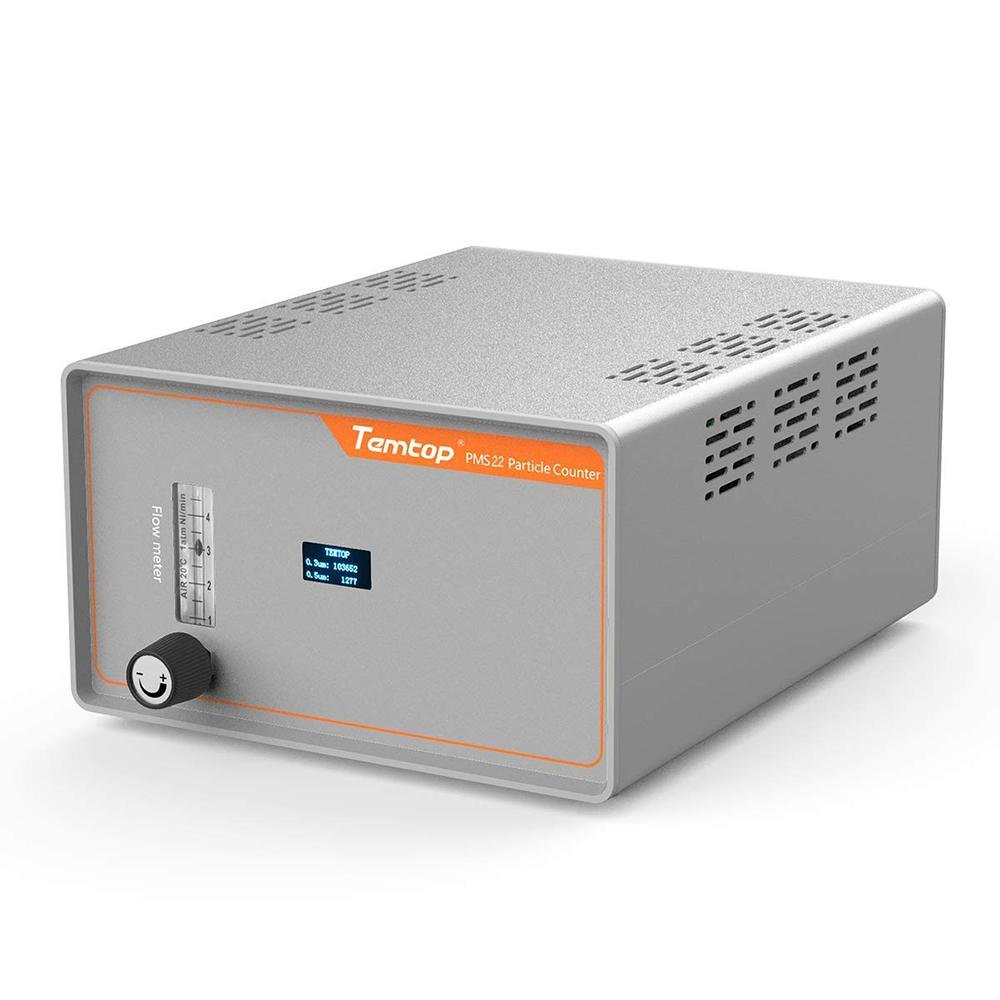

PMS 22 particle counter is a sensor module that uses the principle of laser scattering to detect 0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm in the atmospheric environment. The sensor is made with advanced processing chips and light-sensitive elements. After collected, the signals are processed by a microprocessor and output in the form of a universal digital interface.
The PMS 22 can accurately detect the counts of different sizes of particles in the atmospheric environment in real-time.
- 6-channel particle size monitoring. Benchmarking β ray method adopted, enjoying higher accuracy and correlation
- Equipped with four-wire brushless vacuum pμmp, enjoying higher sampling efficiency
- All-metal precise optical-mechanical structure, stable operation in multiple scenes
- Small size, convenient for the integrated use of multiple devices
- Continuous working for 10,000 hours normally
- Dimensions: 4.45*3.46*1.50 Inches
- Working Principle: Laser Mie-scattering Principle
- Working Temperature Range: 0~50℃
- Storage Temperature Range: -10℃~60℃
- Flow Rate: 2.83L/min(0.1 CFM) (Standard)
- Sampling Period: 6s
- Communication Mode: RS485
- Weight: 0.8 lb
- Warranty: 1 year
User manual: Download
