Elitech EMG-40V Intelligent HVAC Digital Manifold Gauge 4-Way Valve with Micron Gauge Transmitter

51 reviews
5 Stars
63% (32)
4 Stars
31% (16)
3 Stars
4% (2)
2 Stars
2% (1)
1 Star
0% (0)

see all 51 reviews

|
5 questions
In stock
Elitech EMG-40V, the digital manifold gauge with a 4-way Valve and responsive touch screen supports 88 refrigerant types. Fully automatic measurement of subcooling and superheating. Remote view tem...
$640.99 $499.99
-22%
$499.99

Elitech EMG-40V, the digital manifold gauge with a 4-way Valve and responsive touch screen supports 88 refrigerant types. Fully automatic measurement of subcooling and superheating. Remote view temperature and pressure values via Elitech Tools on the phone.

Key Feature:

  • 5" Smart Touch Screen: Shows changes in vacuum, pressure, and temperature in clear data, graph, and display
  • Track Work via Elitech Tools APP: Real-time data monitoring and analysis; 100,000 Points of Data Easily Exported; Take Notes of Job, Time and Date Faster
  • System Leakage Testing: Intuitive and efficient analysis & Monitoring of the process of pressure holding and vacuum leakage test precisely with temperature compensation
  • Automatic calculation: Measure the superheating and subcooling temperature of 88 refrigerants automatically
  • Convenient: 4-way valve and automatic heat pump mode design, a quick and easy application that works without switching refrigerant hoses
  • Service: 1-year warranty. 30 days free & easy return

Technical Parameters:

Pressure Measuring Range  -14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa
Accuracy  0.5%FS
Resolution  0.1psi/0.1kg/cm2/0.1bar/0.01MPa
Pressure unit  psi, inHg, kg/cm2, cmHg, bar, kPa, MPa
Data Sampling Frequency  0.5s
Overload  1000psi/70kg/cm2/69bar/6.8MPa
Pressure Interface  1/4 SAE * 3 and 3/8 SAE*1
Sensor Interface  PS/2 * 2(the left interface is temperature and vacuum probe multiplexing)
USB Interface  Type-C * 1 (for data export and charging)
Charging Parameter  5V2A
Battery Capacity  5000mAh
Recording Time  800 hours (log interval - 30 seconds)
Screen  5" IPS capacitive touch screen
Wireless Transfer Distance  30 meters
Dimensions  254*215*71mm
Weight  3.8lb/1.73kg
Working temperature  -14~122°F/-10~50°C
Storage temperature  -4~140°F/-20~60°C

    Vacuum Parameters:

    Vacuum measurement range  1-19000 microns
    Accuracy

     1-10000 microns:±10% of reading / +10 microns

    10000-19000 microns:±20% of reading

    Resolution
    • 0-400    1 micro
    • 400-3000    10 micros
    • 3000-10000    100 micros
    • 10000-19000   250 micros
    Vacuum unit  micron、inHg、Torr、psia、mbar、mTorr、Pa、kPa
    Interface  1/4 SAE port


    Temperature Clamp:
    Temperature Measurement Range  -40~302°F/-40~150℃
    Accuracy  ±0.9°F/+0.5℃
    Resolution  0.2°F/0.1°C
    Temperature unit  F/°C/K



    Refrigerant List:
    R113 R114 R115 R116 R12 R123 R1233ZD R1234ZE R1234YF R124 R125 R13 R134a R14 R141B R142B R143A R152A R170 R22 R23 R236FA R245FA R290 R32 R401A R401B R401C R402A R402B R403B R404A R406A R407A R407B R407C R407D R407F R408A R409A R410A R410B R412A R413A R414A R414B R416A R417A R417C R420A R421A R421B R422A R422B R422C R422D R424A R426A R427A R428A R429A R434A R437A R438A R441A R443A R448A R449A R450A R452A R452B R453A R454A R454B R455A R458A R500 R502 R503 R507A R508A R508B R514A R600 R600a R601a R718 R744

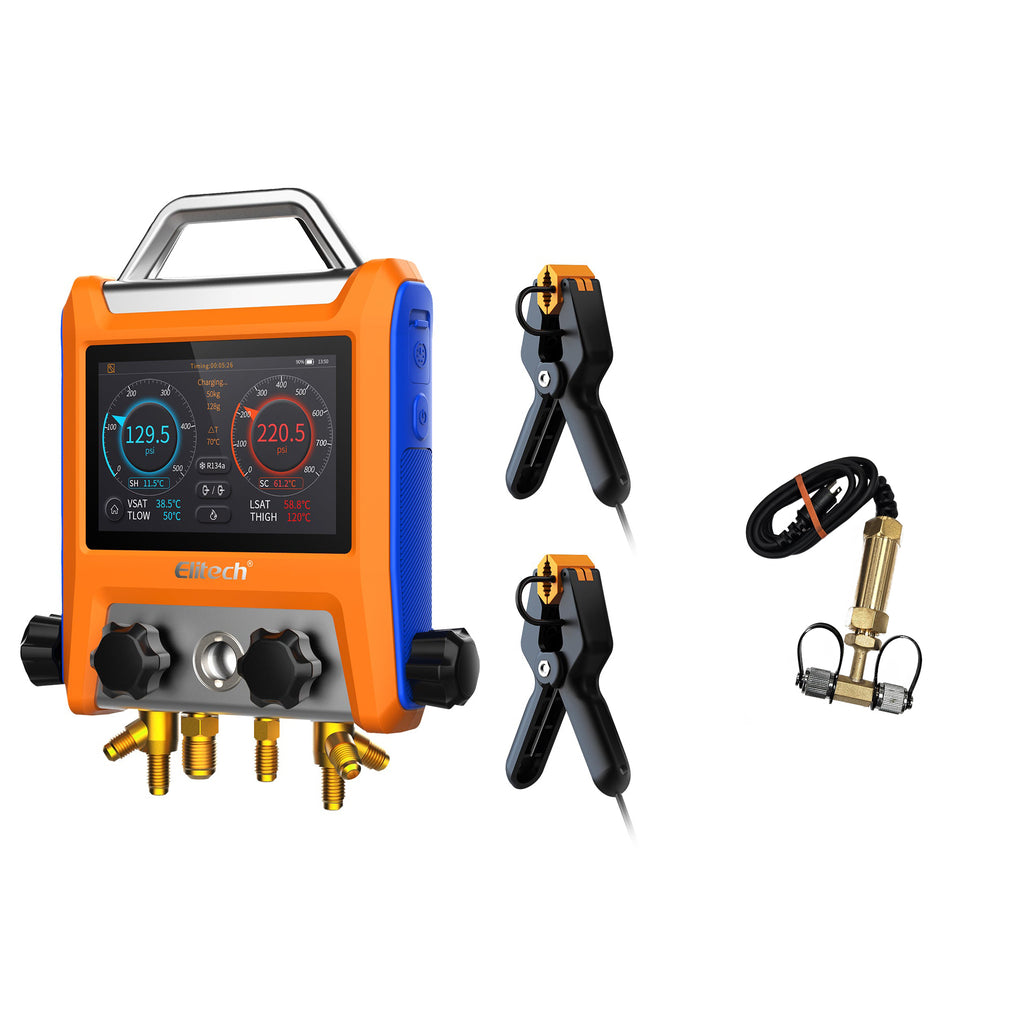

    Packing list
    1 x Vacuum transmitter(T-joint)
    2 x Temperature clamp
    1 x Bent joint
    3 x Refrigerant hose
    1 x Universal power adapter
    1 x USB-C cable
    1 x User Manual (Download)
    1 x Portable durable case

    Details

    Pressure & Temperature measurement: On the Elitech EMG- 40 large screen, the customer can have a clear view of saturation temperature. The unit also provides automatic calculation of superheating and subcooling. The mode of refrigeration and heating can be easily switched. Clear view
    Built-in Micron Gauge:  The EMG- 40 counts with a vacuum transmitter, it can be connected to a vacuum pump and allows the HVAC technicians to monitor the changes in the vacuum in real-time. Estimation completion time evacuation, and vacuum leakage test.
    Unit Settings: Weight can be measured in Kg or Lb. Temperature units are Celcius, Fahrenheit, and Kelvin. Pressure Measurements are psi, in Hg, kg/cm2, cmHg, bar, kPa, Ma. Vacuum measurement: micron, mTorr, mbar, Torr, psi, inHg,kPa and Pa
    Pressure holding measurement: Pressure maintenance leakage, set pressure decay ratio, pressure holding time, support temperature compensation.

    Dial Curve: The EMG-40 allows the user to view temperature and pressure in the dial curve.
    Accurate leakage detection: Pressure holding and temperature compensation to obtain accurate leakage detection
    Refrigerants: The Elitech digital manifold supports more than 80 types of refrigerants and 20 types can be added to the favorites list, allowing users to easily find the refrigerants they need
    Pressure Holding Settings: The EMG-40 has the option to record or not the pressure work, also the user can set the recording interval and delete previous records.


    Product Comparision:

      Customer Reviews

      4.5 / 5

      Based on 51 reviews

      5 Stars
      63% (32)
      4 Stars
      31% (16)
      3 Stars
      4% (2)
      2 Stars
      2% (1)
      1 Star
      0% (0)

      Write a Review

      review_video_thumb
      Filter | | | | Previous Page Next Page (% reviewsData.reviews.current_page %)/(% reviewsData.reviews.last_page %)
      (% authorFirstLetter(review.author) %) (% review.author %) verified
      (% review.title %)
      (% review.option1.name %) : (% review.option1.value %) (% review.option2.name %) : (% review.option2.value %) (% review.option3.name %) : (% review.option3.value %)
      review_image_thumb
      Click to Zoom
      review_video_thumb
      Click to Zoom
      (% review.date_time_str %) Verified Purchase
      ((% review.thumbs_count %)) Helpful

      showing reviews from (% reviewsData.reviews.from %) to (% reviewsData.reviews.to %) Previous Page Next Page

      0 Review Posted

      Product Questions

      (% questionsData.questions.total %) Questions Asked

      0 Question

      Ask a Question

      Filter | | | Previous Page Next Page (% questionsData.questions.current_page %)/(% questionsData.questions.last_page %)
      (% authorFirstLetter(question.author) %) (% question.author %)
      Q : (% question.question %) ?
      Asked on (% question.created_at %)
      A : (% question.answer %)
      By (% question.answered_by %) On (% question.answered_at %)

      showing questions from (% questionsData.questions.from %) to (% questionsData.questions.to %) Previous Page Next Page

      0 Question Asked

      Returns Policy

      You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.). You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days). If you need to return an item, simply send email to support@elitechus.com. We'll notify you via e-mail of your refund once we've received and processed the returned item.

      Return Shipping Address

      Elitech Technology, Inc.
      2528 Qume Drive #2, San Jose,
      CA 95131, United States
      Tel: (+1)4088444070

      Shipping

      We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations. When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page. Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
      United States: Shipping within 24 hours.
      Free Standard Shipping in US: 3-5 Business Days for delivery.
      Next Day Shipping Service Available in US: Orders placed before 12:00pm PST will be shipped on the same day!
      Worldwide: Fast Worldwide DHL Shipping. 2-3 business days to prepare the items and 10-14 business days for delivery. Tax is covered by the buyer.

      Note:
      ISO 17025 certified version data loggers are PRE-SALE only. Lead time: 2 weeks.
      The shipping cost will be shown at checkout according to the different weight and country.
      If your items were lost in transit, please send email to support@elitechus.com. We will send you a replacement or refund.


      UPGRADED ELITECH TOOLS APP(ioS and Android):

      Together with the digital EMG digital manifold series, Elitech has developed the Elitech tools app. An intergraded app, that allows users to manage all Elitech tools as vacuum pump, digital manifold, vacuum gauge, pressure gauge, refrigerant charging scale on one app, is more efficient and more intelligent. The HVAC purpose application can be easily downloaded from Google Play or the Apple store. After the device has been linked to the app, the user can easily watch what's on his gauge from his couch. The Elitech tools allow users to take notes of the job, the date and time will be automatically recorded to the app and can be easily downloaded into an Excel file for PDF. This function allows HVAC professionals to keep track of their work, it is also great to show their customers they really pulled the pressure from their HVAC system.

      Elitech Tools - Manage all Elitech tools as vacuum pump, digital manifold, vacuum gauge, pressure gauge, refrigerant charging scale on one app
