Elitech SVP-12 Intelligent HVAC 1HP Vacuum Pump 12 CFM 2 Stage with Touch Screen

37 reviews
5 Stars
38% (14)
4 Stars
46% (17)
3 Stars
14% (5)
2 Stars
3% (1)
1 Star
0% (0)

see all 37 reviews

|
1 question
In stock

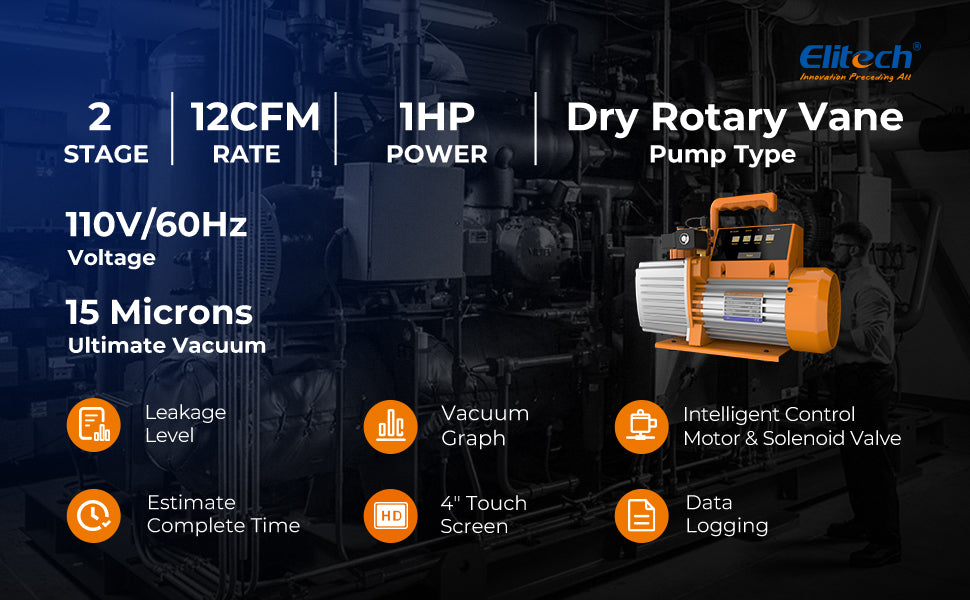

Elitech SVP-12 HVAC vacuum pump is a 12 CFM, dual-stage unit with an innovative touch screen design. The screen displays the data change in the graph to help you know more about how your HVAC job i...
Voltage*
$899.99
$899.99

Elitech SVP-12 HVAC vacuum pump is a 12 CFM, dual-stage unit with an innovative touch screen design. The screen displays the data change in the graph to help you know more about how your HVAC job is going on.  SVP-12 enables your mobile App to connect with the pump in order to realize remote control, setting, real-time reading, and data report export conveniently.

Feature

  • Intelligent Control and Prediction - Control motor and solenoid valve automatically, determine the system capacity according to the vacuum data to understand the volume of recharging refrigerants.
  • Vacuum Change in Graph - View the vacuum process in real-time; Predict the leakage status and job completion time
  • Monitoring data via App during the whole process of vacuuming - Monitor data via APP during the entire vacuum process set your desired units and log interval
  • Smart, Efficient & Reliable - Constantly vacuum control, oil tank and motor temperature monitoring
  • Easy to Use - 4" touch screen, monitoring via App. Comes with 2 bottles of vacuum oil (300ml+450ml)





    User manual: Download

    Certificate: CE

    Video: Vacuum Pump Operation Instruction

    Service: 30 Days Free Return & 1 Year Warranty

    Technical Parameter

    Model  SVP-12
    Stage 2 stages
    Power Supply 110V/60HZ
    Motor AC Induction Motor
    Speed Regulation Fixed Speed
    Vacuum Accuracy ±10% of Reading / ±10 microns(@1-10000microns) ±20% of Reading(@10000-19000microns)
    Working Environment 5°C~40°C (41°F~104°F)
    Transmission Distance 30ft /10m
    Limit Vacuum 15 micron
    Pumping Rate 12 CFM (5 L/S)
    Motor Power 1 HP (750 W)
    Fuel Volume 25.3 oz (750 ml)
    Overall Dimension 18.5inx10.5inx14.8in (470mm*267mm*380mm)
    Weight 36.8 lbs / 16 kg
    Air Inlet 1/4 SAE
    Notes: Above 60,000 microns, vacuum value is not shown and the screen shows --. The waiting time for the vacuum reading is longer for a large system.


    Product Comparision Chart

    Built-in Vacuum Sensor VS Micron Gauge: Due to the different placements of vacuum sensors, the vacuum reading of the pump may vary with the micron gauge which is connected to the system. The airflow is not the same at different placements in the system when vacuuming. The air density is larger which is far away from the pump, so the readings of vacuum are high.

    Oil Mist Notes:

    When starting vacuuming, the pressure is relatively high, the air outlet is large. The vacuum pump has a large exhaust volume. So there will be oil mist overflowing with gas. This is a common feature of rotary vane vacuum pumps. Oil mist appears at first which is a normal phenomenon. When the vacuum drops to a very low value, the exhausting volume is small and there will be no oil mist. Therefore, the vacuum pump should regularly inspect the oil level to avoid running out of oil.
