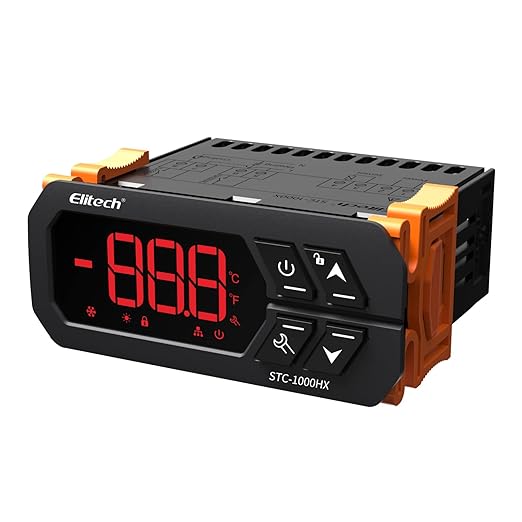

Elitech STC-1000HX Temperature Controller ℉⇋℃ Fahrenheit Celsius Switchable Origin Digital 110V Thermostat 2 Relays Upgraded from STC-1000 New Panel 30% Larger

Availability:
In Stock Out Of Stock
$18.99
0
Title:
Quantity:
Buy Now
SKU:
STC-1000HX-110V
  • Free Shipping Over $49

    Shipping within 24 hours. Free Standard Shipping On Orders Over $49 (US Only): 3-5 Days for delivery.

  • 30 DAYS RETURNS

    Not the right fit? No worries. We'll arrange pick up and a full refund within 7 days including the delivery fee.

  • 1 YEAR WARRANTY

    Quality comes first and our products are designed to last.

Thermostat Temperature Controller Elitech STC-1000HX main functions as below:

1) Auto converts cooling and heating modes to keep your equipments in an ideal temperature range.

2) DIY design use wiring diagram, the more economical and practical choice.

3) The temperature sensor from Shibaura Japan,temperature control range -55°F~248°F, accuracy:±1℃, supports ℉⇋℃.

4) Stable and Reliable as flame retardant ABS for plastic shell reaches up to V0 level and passed EMC anti-interference test.

5) Audible and visual alarm for over temperature and sensor failure problems.





Technical Parameters:

  1. Temperature measuring range: -50℃~120℃ / -55°F~248°F;
  2. Resolution: 0.1℃;
  3. Accuracy: ±1℃ (-50℃~70℃);
  4. Sensor error delay: 1 minute
  5. Power supply: 110 VAC±10%, 50/60Hz;
  6. Power consumption: less than 3W;

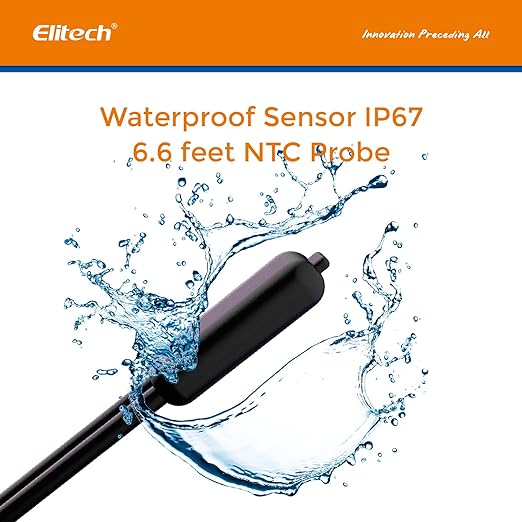

  7. Sensor: NTC sensor (1PC);

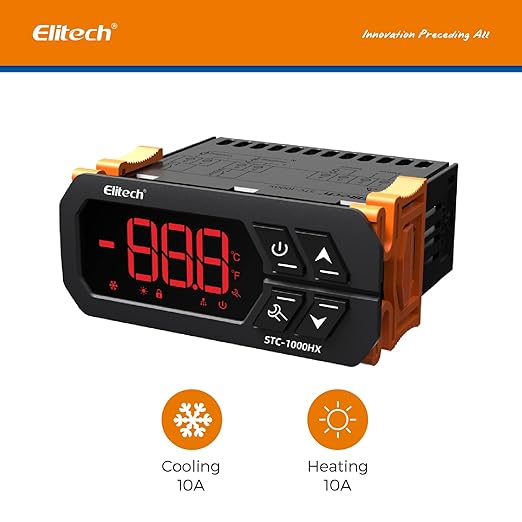

  8. Relay contact capacity: Cool 10A/110VAC;Heat 10A/110VAC;
  9. Ambient temperature: 0~60℃;
  10. Storage temperature: -30~75℃;
  11. Relative humidity: 20%~85% (No condensate)

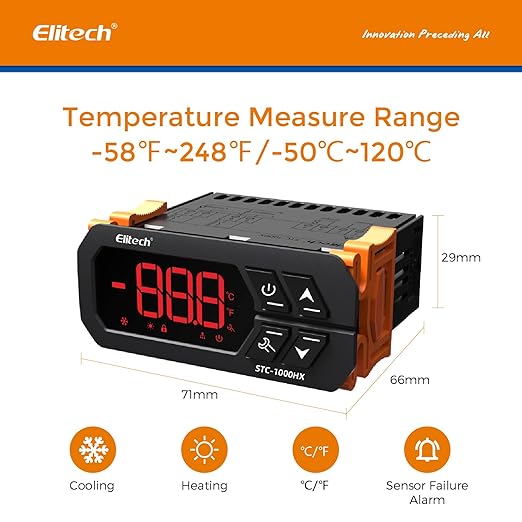

Specification and Size:

 1.Front panel size: 75(L)×34.5(W)mm;

 2.Mounting size: 71(L)×29(W)mm;

 3.Product size: 75(L)×34.5(W)×85(D)mm;

 4.sensor length 2 m included;

 5.Measure range: -50℃+99℃

 6.Mounting size: 71*29 mm

 7.Auto switch between refrigerating and heating

 8. Return difference value



Package Content:

1 x STC-1000HX Temperature controller 110V

1 x 2M Sensor

Note to check if the sensor is connected well, please be sure to connect the heating relay.



User manual: Download

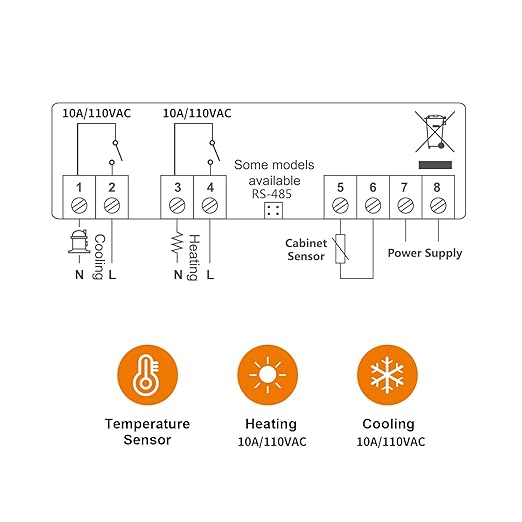

Wiring Diagram:

The unit is of a panel mount design and requires mounting in a suitable box. This unit is supplied with wiring diagram of how to fix the main unit to your application systems. However, it is highly recommended to do the wiring connections by a qualified technician.
